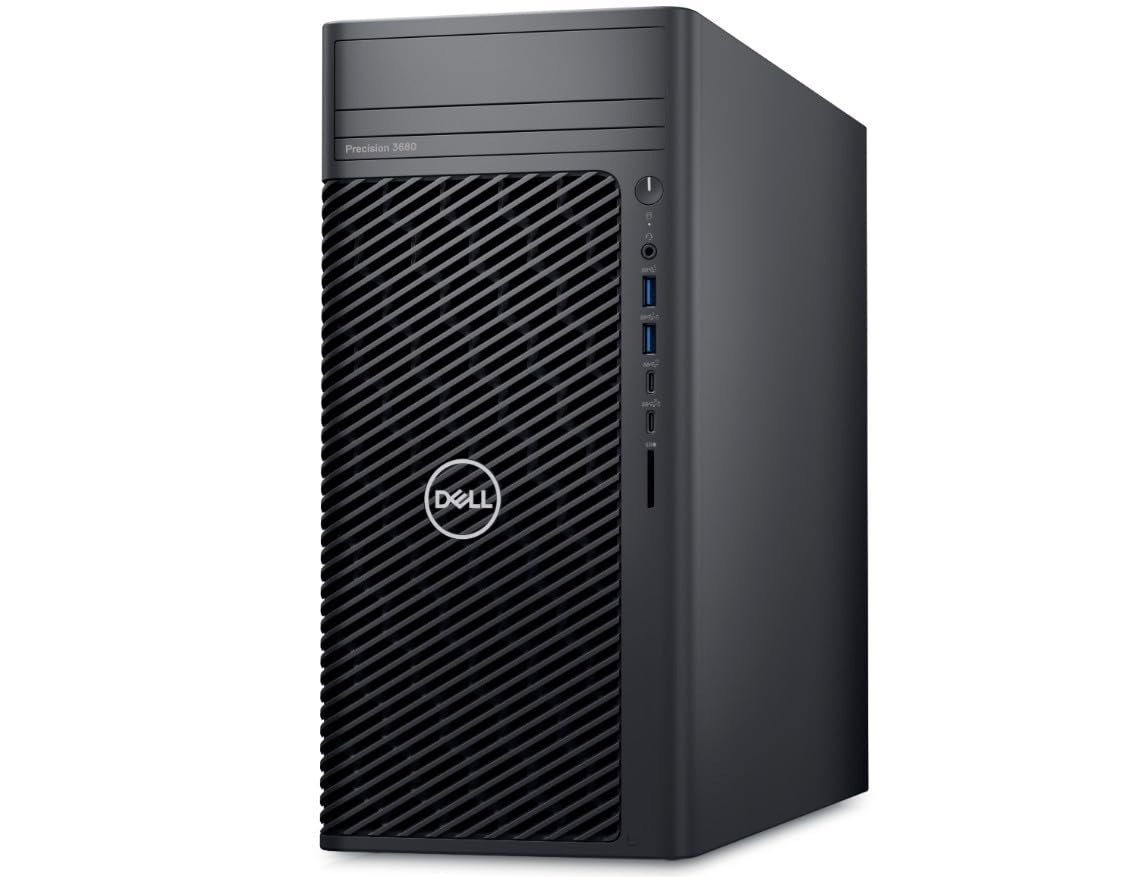

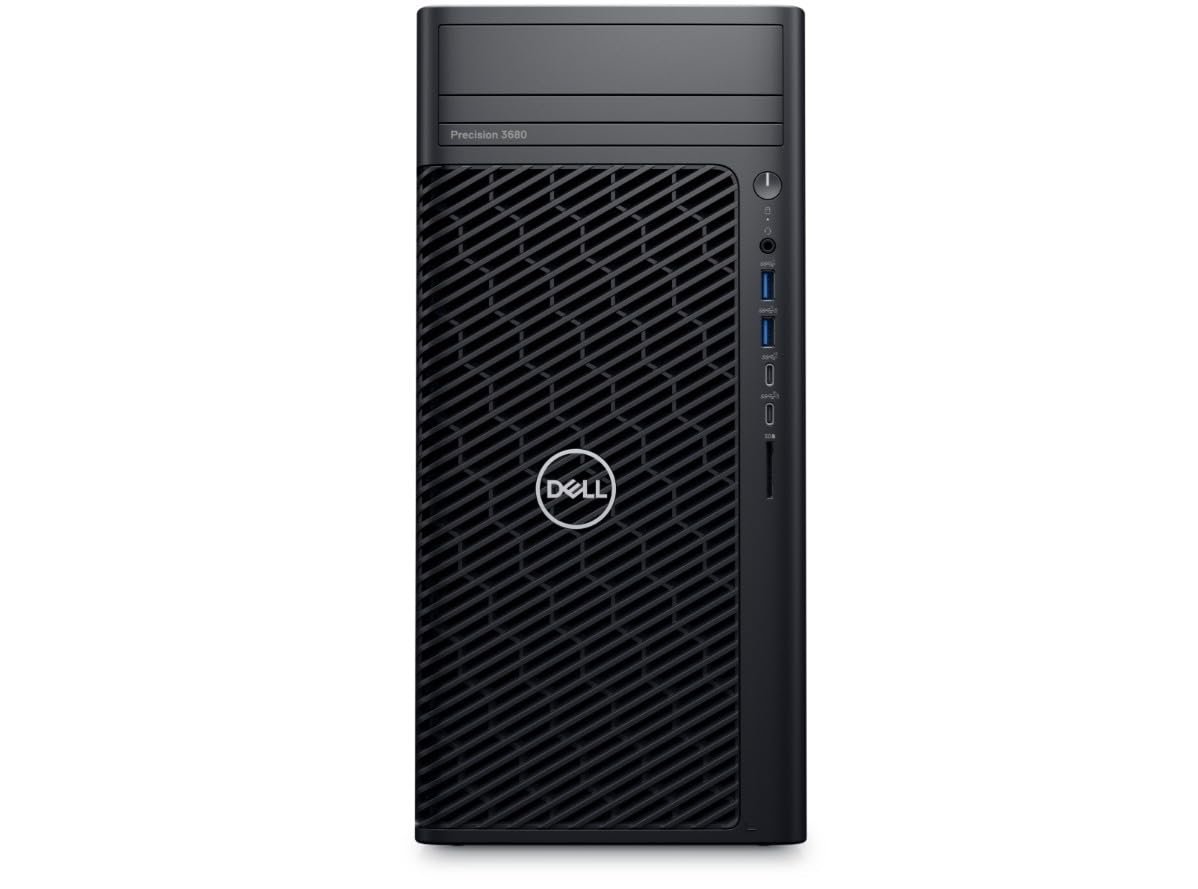

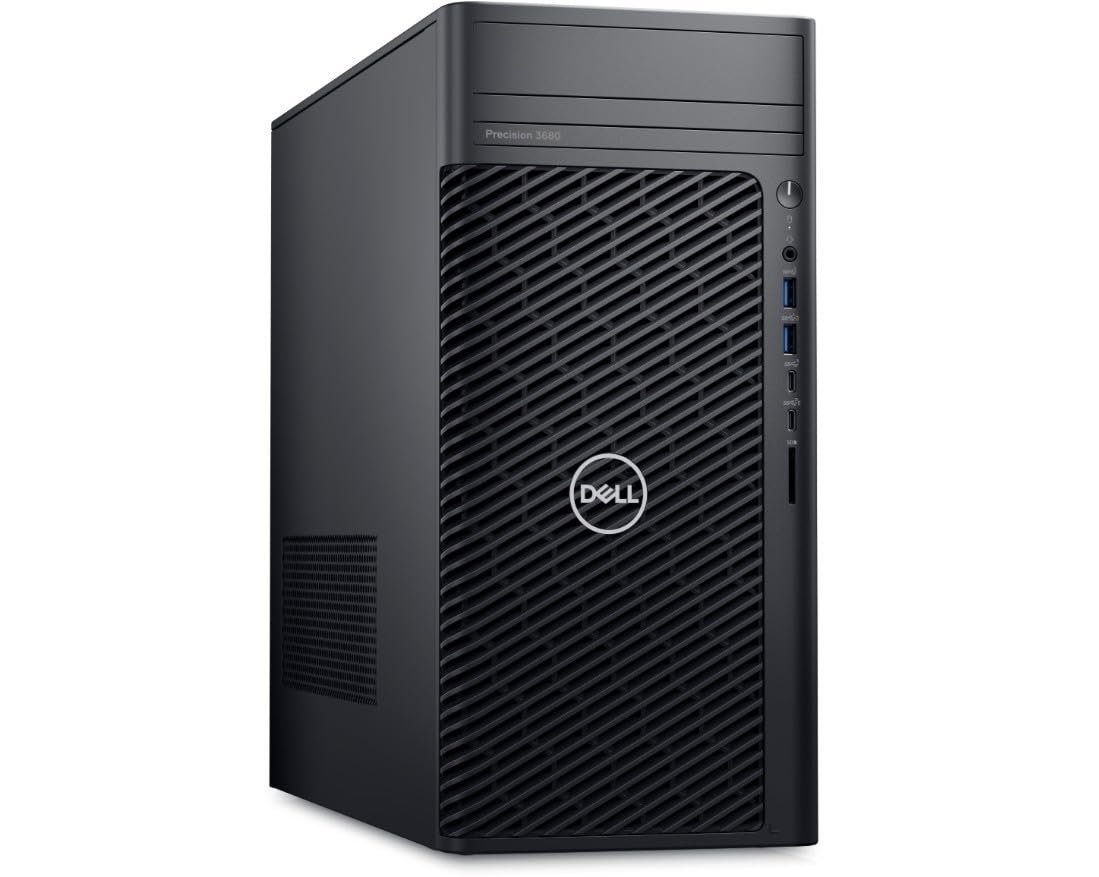

Dell Precision 3680 Tower

Tech Specs

• Processor

  14th Gen Intel^® Core™ i9-14900K vPro^® (36 MB cache, 24 cores, 32 threads, 3.2 GHz to 6.0 GHz Turbo, 125W) 14th Gen Intel^® Core™ i9-14900 vPro^® (36 MB cache, 24 cores, 32 threads, 2.0 GHz to 5.8 GHz Turbo, 65W) 14th Gen Intel^® Core™ i7-14700K vPro^® (33 MB cache, 20 cores, 28 threads, 3.4 GHz to 5.6 GHz Turbo, 125W) 14th Gen Intel^® Core™ i7-14700 vPro^® (33 MB cache, 20 cores, 28 threads, 2.1 GHz to 5.4 GHz Turbo, 65W) 14th Gen Intel^® Core™ i5-14600K vPro^® (24 MB cache, 14 cores, 20 threads, 3.5 GHz to 5.3 GHz Turbo, 125W) 14th Gen Intel^® Core™ i5-14600 vPro^® (24 MB cache, 14 cores, 20 threads, 2.7 GHz to 5.2 GHz Turbo, 65W) 14th Gen Intel^® Core™ i5-14500 vPro^® (24 MB cache, 14 cores, 20 threads, 2.6 GHz to 5.0 GHz Turbo, 65W) 14th Gen Intel^® Core™ i3-14100 (12 MB cache, 4 cores, 8 threads, 3.5 GHz to 4.7 GHz Turbo, 60W)

• Operating System
  (Dell Technologies recommends Windows 11 Pro for business)

  Windows 11 Home Windows 11 Pro Windows 11 Pro National Education Windows 11 Pro for Workstations Ubuntu^® Linux^® 22.04 LTS

• Video Card

  Intel^® UHD Graphics 730 supported for 14th Gen Intel^® Core™ i3-14100 processor Intel^® UHD Graphics 770 supported for remaining processors NVIDIA^® RTX™ 6000 Ada Generation, 48 GB GDDR6 NVIDIA^® RTX™ 5000 Ada Generation, 32 GB GDDR6 NVIDIA^® RTX™ 4500 Ada Generation, 24 GB GDDR6 NVIDIA^® RTX™ 4000 Ada Generation, 20 GB GDDR6 NVIDIA^® T1000, 8 GB GDDR6 NVIDIA^® T1000, 4 GB GDDR6 NVIDIA^® T400, 4 GB GDDR6 AMD Radeon™ Pro W7900, 48 GB GDDR6 AMD Radeon™ Pro W7600, 8 GB GDDR6 AMD Radeon™ Pro W7500, 8 GB GDDR6 AMD Radeon™ Pro W6400, 4 GB GDDR6 AMD Radeon™ Pro W6300, 2 GB GDDR6 Note: One PCI Express x16 Gen5 slot supporting graphics cards up to 450 W (Total power available for Discrete Graphics cards) Some cards are available in Dual configurations

• Memory

  8 GB: 1 x 8 GB, DDR5, 4400 MT/s, Non-ECC 16 GB: 2 x 8 GB, DDR5, 4400 MT/s, Non-ECC, dual-channel 16 GB: 1 x 16 GB, DDR5, 4400 MT/s, Non-ECC 32 GB: 2 x 16 GB, DDR5, 4400 MT/s, Non-ECC, dual-channel 32 GB: 4 x 8 GB, DDR5, 4000 MT/s, Non-ECC, dual-channel 64 GB: 2 x 32 GB, DDR5, 4400 MT/s, Non-ECC, dual-channel 64 GB: 4 x 16 GB, DDR5, 4000 MT/s, Non-ECC, dual-channel 128 GB: 4 x 32 GB, DDR5, 3600 MT/s, Non-ECC, dual-channel 16 GB: 1 x 16 GB, DDR5, 4400 MT/s, ECC 32 GB: 2 x 16 GB, DDR5, 4400 MT/s, ECC, dual-channel 64 GB: 2 x 32 GB, DDR5, 4400 MT/s, ECC, dual-channel 64 GB: 4 x 16 GB, DDR5, 4000 MT/s, ECC, dual-channel 128 GB: 4 x 32 GB, DDR5, 3600 MT/s, ECC, dual-channel 4 DIMM Slots: Up to 128 GB or up to 4400 MT/s ECC and Non-ECC DDR5 Maximum speed: 4400 MT/s Maximum capacity: 128 GB Note: Actual memory speed depends on the memory configuration.

• Storage

  1 TB, 7200 RPM, 3.5-inch, SATA, HDD 2 TB, 7200 RPM, 3.5-inch, SATA, HDD 4 TB, 5400 RPM, 3.5-inch, SATA, HDD 4 TB, 7200 RPM, 3.5-inch, SATA, Enterprise HDD (optional) 8 TB, 7200 RPM, 3.5-inch, SATA, Enterprise HDD (optional) 256 GB, M.2 2230, Gen 4 PCIe NVMe, SSD, Class 35 512 GB, M.2 2280, Gen 4 PCIe NVMe, SSD, Class 40 1 TB, M.2 2280, Gen 4 PCIe NVMe, SSD, Class 40 2 TB, M.2 2280, Gen 4 PCIe NVMe, SSD, Class 40 4 TB, M.2 2280, Gen 4 PCIe NVMe, SSD, Class 40 512 GB, M.2 2280, Gen 4 PCIe NVMe, SSD, Self-Encrypting 1 TB, M.2 2280, Gen 4 PCIe NVMe, SSD, Self-Encrypting

• Color

  Dell Standard Black

• Microsoft Office

  Microsoft Office 30-day Trial Microsoft Office Home and Business 2021 Microsoft Office Professional 2021 Dell Optimizer for Precision Premier Color Dell Support Assist (Exaclibur) DDRE (Dell Developed Recovery Environment ) Intel WiFi Direct Dell Support Center Teradici Soft Host (Cloud) and Client Validation (CAS+)

• Security Software

  McAfee^® Small Business Security 30-day Trial McAfee^® Small Business Security 12-month Subscription McAfee^® Small Business Security 36-month Subscription Security software per software functional plan/cycle list Dell Data Protection | Personal Edition (DDP | E PE) or Dell Encryption Personal (Future Name) Dell Data Protection | Enterprise Edition (DDP | E EE) or Dell Encryption Enterprise (Future Name) Dell Data Protection | External Media Edition (DDP | E EME) or Dell Encryption External Media (Future Name) Data Leakage Protection (DLP) or Dell Data Guardian (new name) Dell Data Protection | Bitlocker Manager (DDP | BLM) VMWare Airwatch Dell Data Protection | Endpoint Security Suite or Dell Endpoint Security Suite Pro Dell Data Protection | Endpoint Security Suite Enterprise or Dell Endpoint Security Suite Enterprise Mozy (Cloud Backup) Dell Threat Defense RSA SecureID RSA NetWitness Endpoint Absolute Data and Device Security D-Pedigree (Secure Supply Chain Functionality) Microsoft Windows Bitlocker Manager Support for Encryption SED HDD's (Opal FIPS and non FIPS, SATA, PCIe) Support eDRIVE Storage including RAID Support UEFI-Preboot Authentication (PBA) solution for Windows 10 Local HDD data wipe via BIOS ("Secure Erase") BIOS Administrative Password BIOS Password BIOS HDD password option (default off) Windows 10 Device Guard and Credential Guard BIOS Data Port On/Off - Data Port disablement Intel Secure Boot (TXT + TPM) - Launch control policy Intel's Identity Protection (IPT) Intel Guard Technologies & Secure Key Secure update of pre-boot password(s) via remote BIOS update

• Support Services

  1Y Basic Hardware Warranty Service with Onsite Service after Remote Diagnosis 2Y Basic Warranty Extension 3Y Basic Warranty Extension 4Y Basic Warranty Extension 5Y Basic Warranty Extension 1Y ProSupport with Next Business Day Onsite service 2Y ProSupport with Next Business Day Onsite service 3Y ProSupport with Next Business Day Onsite service 4Y ProSupport with Next Business Day Onsite service 5Y ProSupport with Next Business Day Onsite service 1Y ProSupport Plus for Client with Next Business Day Onsite service 2Y ProSupport Plus for Client with Next Business Day Onsite service 3Y ProSupport Plus for Client with Next Business Day Onsite service 4Y ProSupport Plus for Client with Next Business Day Onsite service 5Y ProSupport Plus for Client with Next Business Day Onsite service

• Accidental Damage Protection

  1-year Accidental Damage Service 2-year Accidental Damage Service 3-year Accidental Damage Service 4-year Accidental Damage Service 5-year Accidental Damage Service

• Ports

  Front: 1 USB 3.2 Gen 1 (5 Gbps) port 1 USB 3.2 Gen 1 (5 Gbps) port with PowerShare 1 USB 3.2 Gen 2 (10 Gbps) Type-C^® port 1 USB 3.2 Gen 2x2 (20 Gbps) Type-C^® port with PowerShare 1 Universal Audio port Rear: 2 DisplayPort 1.4a HBR2 ports 2 USB 2.0 (480 Mbps) ports with SmartPower 1 RJ45 (1 GbE) Ethernet port 2 USB 3.2 Gen 2 (10 Gbps) ports 2 USB 3.2 Gen 2 (10 Gbps) Type-C^® ports 1 Audio line-out 1 Optional Port (VGA, HDMI 2.0, DP++ 1.4a HB3, USB 3.2 Gen 2 (10 Gbps) Type-C^® with DP-Alt mode) 1 RJ45 (2.5 GbE) Ethernet port (optional)

• Optical Drive

  8x DVD-ROM, 9.5 mm 8x DVD+/-RW, 9.5 mm Integrated Smart Card Reader with Contact and Contactless Support (CAC/PIV)

• Slots

  Front: 1 SD-card slot Rear: 1 full-height Gen5 PCIe x16 slot 1 full-height Gen3 PCIe x4 slot 1 full-height Gen4 PCIe x4 open-ended slot 1 M.2 2230 slot for WiFi and Bluetooth card 2 M.2 2230/2280 PCIe Gen4 slots for NVMe SSD 1 M.2 2280 PCIe Gen 3 for NVMe SSD 5 SATA slots for 3.5-inch HDD/ODD

• Dimensions & Weight

  Height: 372.90 mm (14.68 in.) Width: 173.00 mm (6.81 in.) Depth: 420.20 mm (16.54 in.) Weight (minimum): 7.58kg (16.71 lb) Weight (maximum): 16.05 kg (35.38 lb)

• Wireless

  Qualcomm® Wi-Fi 6E WCN6856-DBS, 2x2, 802.11ax, MU-MIMO, Bluetooth® 5.3 wireless card Intel® Wi-Fi 6E AX211, 2x2, 802.11ax, MU-MIMO, Bluetooth® 5.3 wireless card

• Power

  300W Platinum internal power supply unit (80PLUS Platinum Certified) 500W Platinum internal power supply unit (80PLUS Platinum Certified) 1000W Platinum internal power supply unit (80PLUS Platinum Certified)
